HYUNDAI EXCAVATOR

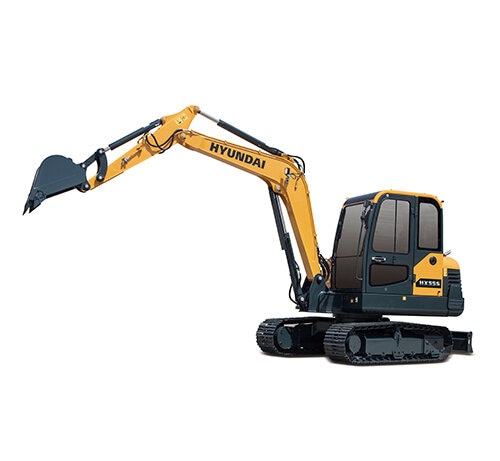

Hyundai HX55S
- Operating Weight 5.56 ton
- Bucket Capacity 0.18 m³
- Rated Power 48.5hp/2200rpm
GENERAL
| Operating Weight | 5.56 ton |
|---|---|
| Bucket Capacity | 0.18 m³ |
| Size | Mini |
ENGINE
| Emission | TIER 2 |
|---|---|
| Engine model | YANMAR 4TNV94L |
| Rated Power | 48.5hp/2200rpm |
| Max. Torque | 20.5kgf·m/1400rpm |
HYDRAULIC
| Main pumps rated flow | 138 ℓ/min |
|---|---|
| Implement circuit | 240 kgf/cm2 |
TANK CAPACITY
| Fuel tank | 118.5 ℓ |
|---|---|
| Hydraulic tank | 70 ℓ |
| DEF/ ADBLUE tank | – ℓ |
PERFORMANCE
| Swing speed | 10.9 rpm |
|---|---|
| Travel speed | 4.6 km/h |
| Max. Traction force | – kgf |
| Max. gradeability | 35 deg |
| Bucket Digging Force (ISO) | 4670 kgf |
| Arm Digging Force (ISO) | 2753 kgf |
DIMENSIONS
| Overall length | 5900 mm |
|---|---|
| Overall height | 2550 mm |
| Overall width | 1920 mm |
| Tail swing radius | 1650 mm |
| Tumbler distance | 1990 mm |
| Ground clearance | 380 mm |
WORKING RANGE
| Boom length | 3000 mm |
|---|---|
| Arm length | 1600 mm |
| Max. Digging reach | 6110 mm |
| Max.Digging depth | 3730 mm |
| Max. Digging Height | 5740 mm |
| Max. Dumping Height | 4040 mm |
| Min. Swing radius | 2350 mm |
