HYUNDAI EXCAVATOR

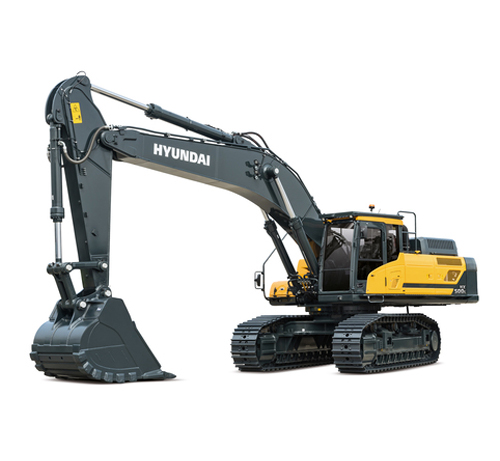

Hyundai HX500L
- Operating Weight 49.9 ton
- Bucket Capacity 1.38 – 3.60 m³
- Rated Power 335hp/2100rpm
GENERAL
| Operating Weight | 49.9 ton |
|---|---|
| Bucket Capacity | 1.38 ~ 3.60 m³ |
| Size | Large |
ENGINE
| Emission | TIER 3 |
|---|---|
| Engine model | CUMMINS / X12 |
| Rated Power | 335hp/2100rpm |
| Max. Torque | 170kgf·m/1400rpm |
HYDRAULIC
| Main pumps rated flow | 2 × 394 ℓ/min |
|---|---|
| Implement circuit | 330 kgf/cm2 |
TANK CAPACITY
| Fuel tank | 660 ℓ |
|---|---|
| Hydraulic tank | 275 ℓ |
| DEF/ ADBLUE tank | – ℓ |
PERFORMANCE
| Swing speed | 8.8 rpm |
|---|---|
| Travel speed | 5.5 km/h |
| Max. Traction force | 39674 kgf |
| Max. gradeability | 35 deg |
| Bucket Digging Force (ISO) | 25200 kgf |
| Arm Digging Force (ISO) | 20900 kgf |
DIMENSIONS
| Overall length | 12160 mm |
|---|---|
| Overall height | 3850 mm |
| Overall width | 3540 mm |
| Tail swing radius | 3800 mm |
| Tumbler distance | 4470 mm |
| Ground clearance | 1370 mm |
WORKING RANGE
| Boom length | 7060 mm |
|---|---|
| Arm length | 3380 mm |
| Max. Digging reach | 12060 mm |
| Max.Digging depth | 7730 mm |
| Max. Digging Height | 11060 mm |
| Max. Dumping Height | 7710 mm |
| Min. Swing radius | 4870 mm |
